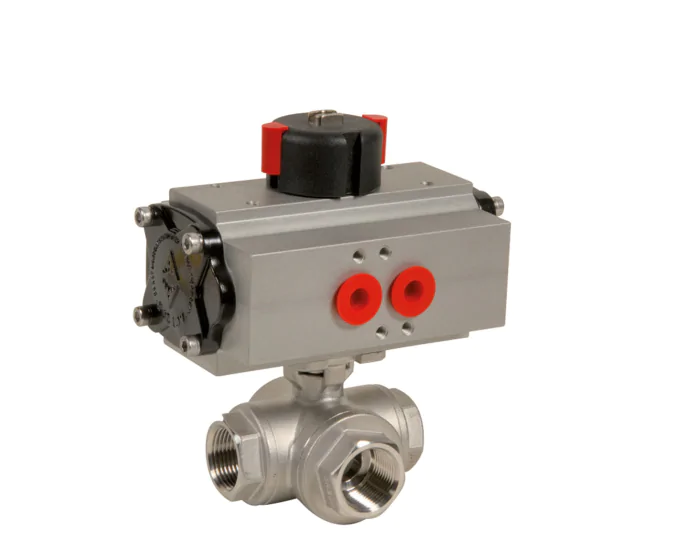

The 780XS L-port 3-way stainless steel ball valve has a CF8M body and ball. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN50. Direct mounting.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| 3-way type | L-port |
| Pneumatic actuator type | Double acting |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Reduced Double acting DN8 - 1/4'' L-port | 275400015100 | S1001411 |
€277.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Spring return DN8 - 1/4'' L-port | 275400016101 | S1001412 |
€313.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Double acting DN10 - 3/8'' L-port | 275401015100 | S1001413 |
€277.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Spring return DN10 - 3/8'' L-port | 275401016101 | S1001414 |
€314.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' Double acting L-port | 275402015100 | S1001415 |
€277.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' Spring return L-port | 275402016101 | S1001416 |
€314.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' Double acting L-port | 275403015101 | S1001417 |
€326.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' Spring return L-port | 275403016102 | S1001418 |
€376.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' Double acting L-port | 275404015101 | S1001419 |
€328.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' Spring return L-port | 275404016102 | S1001420 |
€381.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 Double acting L-port | 275405015102 | S1001421 |
€364.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 Spring return L-port | 275405016103 | S1001422 |
€416.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 Double acting L-port | 275406015102 | S1001423 |
€489.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 Spring return L-port | 275406016104 | S1001424 |
€590.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' Double acting L-port | 275407015103 | S1001425 |
€614.04
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' Spring return L-port | 275407016105 | S1001426 |
€765.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Double acting DN8 - 1/4'' T-port | 275420015100 | S1001427 |
€277.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced Spring return DN10 - 3/8'' T-port | 275421016101 | S1001430 |
€314.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' Double acting T-port | 275422015100 | S1001431 |
€277.10
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' Spring return T-port | 275422016101 | S1001432 |
€314.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' Double acting T-port | 275423015101 | S1001433 |
€326.73
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' Spring return T-port | 275423016102 | S1001434 |
€376.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' Double acting T-port | 275424015101 | S1001435 |
€328.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' Spring return T-port | 275424016102 | S1001436 |
€381.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 Double acting T-port | 275425015102 | S1001437 |
€364.67
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 Spring return T-port | 275425016103 | S1001438 |
€416.71
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 Double acting T-port | 275426015102 | S1001439 |
€489.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 Spring return T-port | 275426016104 | S1001440 |
€590.59
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' Double acting T-port | 275427015103 | S1001441 |
€614.04
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' Spring return T-port | 275427016105 | S1001442 |
€765.00
(excl. btw)
|
add to cart |
